ANSI B16.5 Class150 Lap Joint Flange Steel Pipe Flange
  • ANSI B16.5 Class150 Lap Joint Flange Steel Pipe FlangeANSI B16.5 Class150 Lap Joint Flange Steel Pipe Flange

ANSI B16.5 Class150 Lap Joint Flange Steel Pipe Flange

Used in conjunction with a "Lap joint Stub End," these flanges are nearly identical to a slip-on flange with the exception of a radius at the intersection of the flange face and the bore to accommodate the flanged portion of the stubbed.AG supply high performance flange such as, ANSI B16.5 Class150 LAP JOINT FLANGE STEEL PIPE FLANGE.We are a family - run manufacture established on 1992.

Send Inquiry

Product Description

The datasheet is for ANSI B16.5 Class150 LAP JOINT FLANGE STEEL PIPE FLANGE.

Dimensions to ASME B16.5 Pipe Flanges : NPS 1/2 through NPS 24 Metric/Inch Standard
Bolt circle diameters are 1/8 inch larger than bolt diameter.
1/4" raised face is not included in dimension "C" and "M".

Pipe Size

(NPS)

Outside Diameter of Flange

A

Thickness of Flange

C

Diameter of Bore

F

Diameter of Hub at Base

J

Length of Hub

M

Radius


R

Number of Bolt Holes

NBH

Diameter of Bolt Holes

 DBH

Bolt Circle Diameter

P

Approx Weight

(lb)

AW

1/2

3 1/2

7/16

0.90

1 3/16

5/8

1/8

4

5/8

2 3/8

2

3/4

3 7/8

1/2

1.11

1 1/2

5/8

1/8

4

5/8

2 3/4

2

1

4 1/4

9/16

1.38

1 15/16

11/16

1/8

4

5/8

3 1/8

2

1 1/4

4 5/8

5/8

1.72

2 5/16

13/16

3/16

4

5/8

3 1/2

3

1 1/2

5

11/16

1.97

2 9/16

7/8

1/4

4

5/8

3 7/8

3

2

6

3/4

2.46

3 1/16

1

5/16

4

3/4

4 3/4

5

2 1/2

7

7/8

2.97

3 9/16

1 1/8

5/16

4

3/4

5 1/2

7

3

7 1/2

15/16

3.60

4 1/4

1 3/16

3/8

4

3/4

6

8

3 1/2

8 1/2

15/16

4.10

4 13/16

1 1/4

3/8

8

3/4

7

11

4

9

15/16

4.60

5 5/16

1 5/16

7/16

8

3/4

7 1/2

13

5

10

15/16

5.69

6 7/16

1 7/16

7/16

8

7/8

8 1/2

15

6

11

1

6.75

7 9/16

1 9/16

1/2

8

7/8

9 1/2

19

8

13 1/2

1 1/8

8.75

9 11/16

1 3/4

1/2

8

7/8

11 3/4

30

10

16

1 3/16

10.92

12

1 15/16

1/2

12

1

14 1/4

43

12

19

1 1/4

12.92

14 3/8

2 3/16

1/2

12

1

17

64

14

21

1 3/8

14.18

15 3/4

3 1/8

1/2

12

1 1/8

18 3/4

99

16

23 1/2

1 7/16

16.19

18

3 7/16

1/2

16

1 1/8

21 1/4

128

18

25

1 9/16

18.20

19 7/8

3 13/16

1/2

16

1 1/4

22 3/4

146

20

27 1/2

1 11/16

20.25

22

4 1/16

1/2

20

1 1/4

25

185

22

29 1/2

1 13/16

22.25

24

4 1/4

1/2

20

1 3/8

27 1/4

245

24

32

1 7/8

24.25

26 1/8

4 3/8

1/2

20

1 3/8

29 1/2

260

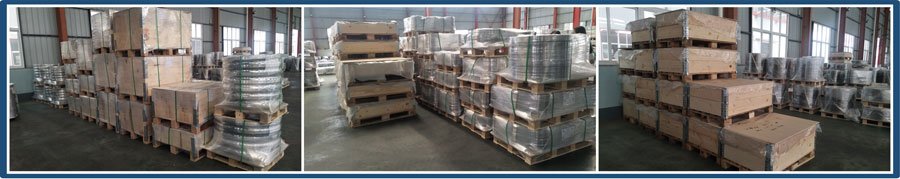

Flange Parking-ANSI B16.5 Class150 LAP JOINT FLANGE STEEL PIPE FLANGE

AG also emphasis on the packaging. The ANSI B16.5 Class150 LAP JOINT FLANGE STEEL PIPE FLANGE are packed in no Fumigete/ Fumigate Plywood/wood pallet or case.We also provide packing solution as per customzied standard.

Qualification of ANSI B16.5 Class150 LAP JOINT FLANGE STEEL PIPE FLANGE
TUV&VD-TUV/DNV/BV/ISO9001/KR


FAQ

Q:Are the form of packaging and transportation changeable?
A:Yes,it’s flexiableas per your requirement.

Q:Is it possible to be shipped ahead of time?
A: It depends on the whole product plan and operation.
Q:Can you manufacture Drawing Flanges?
A:Yes,we have the ability to do this and satisfy you.
