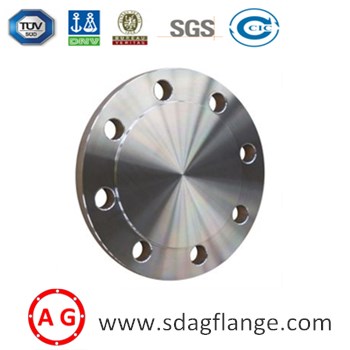

When selecting a blind flange for your piping system, understanding the relevant industry standards is critical to ensuring safety, compatibility, and long-term performance. As a key component used to seal the end of a pipeline or vessel, a blind flange must meet stringent specifications to handle pressure, temperature, and environmental conditions. Below, we break down the essential standards and parameters that define a high-quality blind flange.
Blind flanges are manufactured according to internationally recognized standards to guarantee uniformity and reliability. The most widely adopted standards include:
ASME B16.5: This standard covers dimensions, tolerances, and pressure-temperature ratings for pipe flanges, including blind flanges, in sizes up to 24 inches.
ASME B16.47: Applicable for larger blind flanges (over 24 inches), this standard specifies requirements for series A and B flanges.
ASTM A105/A105M: Standard material specification for carbon steel components used in blind flanges.
EN 1092-1: The European standard for flanges, providing definitions, types, and dimensions.
MSS SP-44: Focuses on steel pipeline flanges, including blind types, for high-pressure applications.
These standards ensure that every blind flange is produced with consistent quality and performance characteristics.
When evaluating a blind flange, consider the following parameters to ensure it meets your project requirements:
Material Grades:
Carbon Steel: ASTM A105, A350 LF2
Stainless Steel: ASTM A182 F304, F316
Alloy Steel: ASTM A182 F11, F22
Pressure Ratings:
Blind flanges are rated based on their ability to withstand pressure at specific temperatures. Common ratings include:
150 PSI
300 PSI
600 PSI
900 PSI
1500 PSI
2500 PSI
Dimensions:
Key dimensional parameters include outside diameter, bolt circle diameter, and thickness. Below is a reference table for common sizes:
| Size (NPS) | Outside Diameter (OD) | Bolt Circle Diameter | Thickness | Number of Bolt Holes |
|---|---|---|---|---|
| 1/2 | 3.75 in | 2.38 in | 0.44 in | 4 |
| 2 | 6.00 in | 4.75 in | 0.69 in | 8 |
| 4 | 9.00 in | 7.50 in | 0.88 in | 8 |
| 8 | 13.50 in | 11.75 in | 1.25 in | 12 |
| 12 | 19.00 in | 17.00 in | 1.62 in | 16 |
| 16 | 22.50 in | 20.25 in | 1.88 in | 20 |
Face Types:
Raised Face (RF)
Flat Face (FF)
Ring-Type Joint (RTJ)
Each blind flange is designed to match specific piping configurations and operational demands. Proper material selection and adherence to dimensional standards are crucial for leak-proof and durable performance.
A blind flange is commonly used in industries such as oil and gas, chemical processing, water treatment, and power generation. When selecting a blind flange, always verify that it conforms to the relevant ASME, ASTM, or EN standards. Additionally, ensure compatibility with the pipe material and media conditions (e.g., corrosive environments may require stainless steel or coated flanges).
In summary, understanding the standards and parameters for blind flanges helps in making informed decisions for your infrastructure projects. Whether for temporary sealing or permanent isolation, a well-manufactured blind flange ensures system integrity and safety.
